Catamaran BALI 5.4 - pictures, plans and features

Presentation

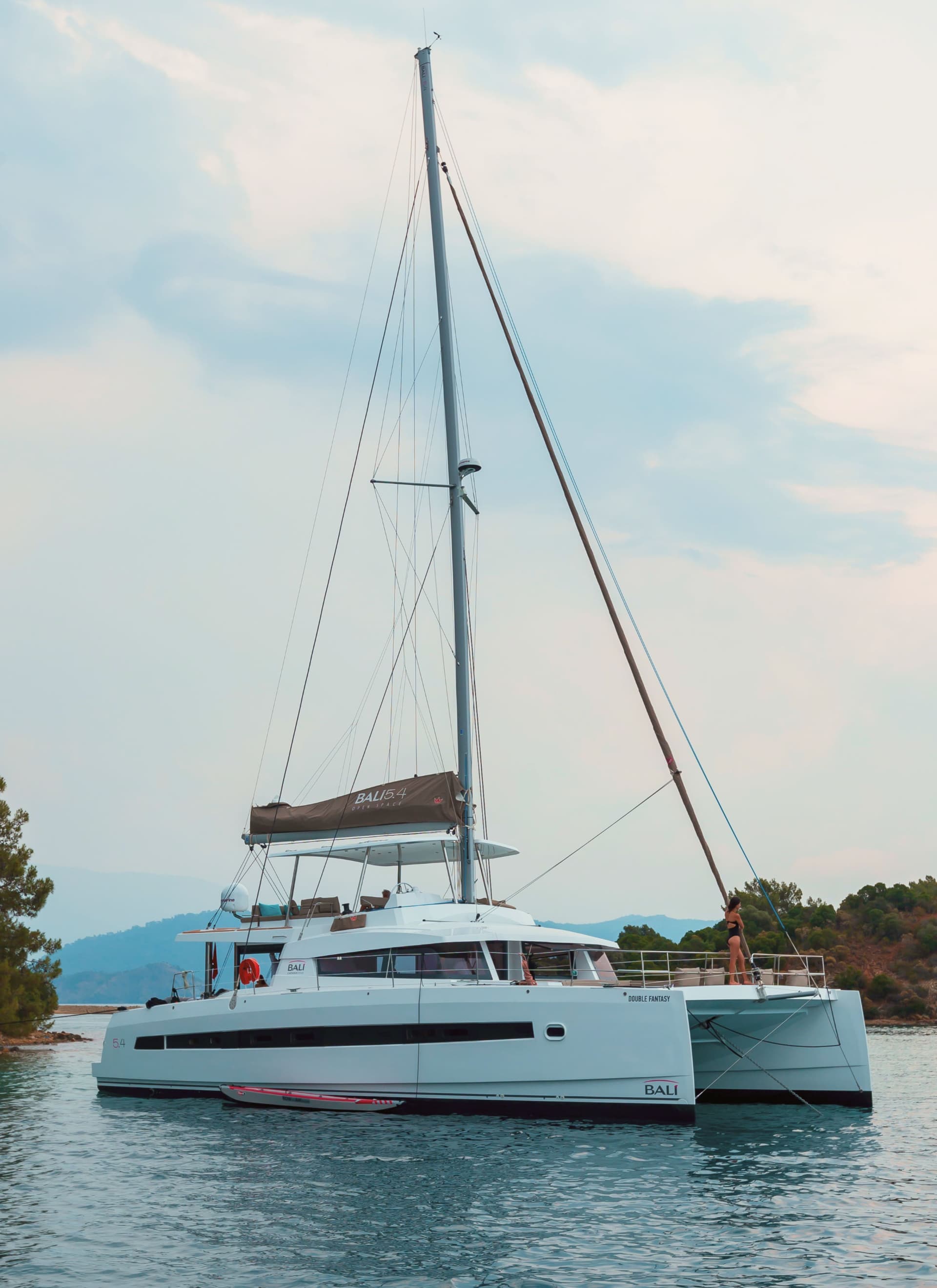

BALI 5.4

EXCEPTIONAL COMFORT!

The BALI 5.4 is an exceptional 54-foot catamaran and is the flagship of the BALI CATAMARANS range. Thanks to innovations and technologies from CATANAGROUP, this boat features cleverly designed spaces allowing everyone on board to enjoy the various different areas, either with family, friends or in complete privacy. This flagship of the fleet offers 126m² of usable space, a fully fitted L-shaped galley, the famous “BALI door” and very large windows. More than ever, the emphasis is on the OpenSpace concept. The 5.4 can accommodate up to 6 double cabins and 6 bathrooms of exceptional size and comfort.

Specifications

Général

Conception Olivier Poncin

Naval architect Xavier Faÿ

Dimensions

Hull length 53'2"

Water line length 53'2"

Overall length 55'7"

Beam 28' 8"

Usable deck area 1,380 SQ FT

Draft 4' 9"

Détails techniques

Empty weight 45942 LBS

Standard sail area (mainsail + solent) 1,700 SQ FT

Maximum upwind sail area (square top mainsal + code 0) 2,195 SQ FT

Flybridge Yes

Displacement at maximum load 65808 LBS

Forward cockpit door Yes

Engines 2 X 42 hp up to 59 hp Yanmar

Fuel max 317 US GAL

Fresh water max 349 US GAL

Fridge + freezer max 163 US GAL

CE certification A: 16 / B: 16 / C: 24 / D: 40 persons

Download the brochure

Download the technical sheet

Compare

Modèle/ModelLongueur hors tout/ Overall lengthLargeur hors tout/ BeamSurface utilisable/Usable surface Tirant d'eau/ DraftPoids à vide / Empty weightSurface de voilure standard / standard sail areaSurface maxi de voilure au près/ Maximum upwind sail areaFlybridgePorte de cockpit avant/ Forward cockpit door Motorisation/ EnginesGasoil/ FuelEau douce/ Fresh waterRéfrigérateur + Congélateur/ Refrigerator+ freezer capacityCabins versions (Cabins / heads)Prix à partir de/ Price from

12.08 m / 39' 76.46 m / 21' 266 m2 / 710 SQ FT1.10 m / 3' 78.4t / 17,637 Lbs76 m2 / 818 SQ FT100 m2 / 1,076 SQ FT2 x 20 hp / cv up to 2 x 30 hp / cv Jusqu'à 400 L / up to 105.6 US GalJusqu'à 660 L / up to 174.3 US GalJusqu'à 240 L / up to 8.47 cu ft2/2 3/2 4/2340 000€ ex VAT12.33 m / 40' 56.55 m / 21' 570.4 m2 / 757.5 SQ FT1.19 m / 3' 109.4t / 19,842 LBS75 m2 / 807 SQ FT101 m2 / 1,087 SQ FT2X20 cv/hp up to 40 cv/hpJusqu'à 400 L / up to 105.6 US GALJusqu'à 760 L / up to 201 US GALJusqu'à 265 L / up to 9.36 CU FT3/3 4/4397 000 € ex VAT12.84 m / 42' 27.07 m / 23' 279.2 m2 / 852 SQ FT1.22 m / 4'11.40t / 25,133 LBS90 m2 / 968 SQ FT117 m2 / 1,259 SQ FT2x30cv/hp up to 45 cv/hpJusqu'à 640 L / up to 169 US GALJusqu'à 860 L / up to 228 US GALJusqu'à 336 L / up to 11.87 CU FT3/3 4/4489 000 € ex VAT13.50 m / 44' 37.40 m / 24' 387.9 m2 / 946 SQ FT1.26 m / 4' 113.8t116 m2 / 1.248 SQ FT158 m2 / 1.700 SQ FT2x40cv/hp up to 2x57cv/hpJusqu'à 800 L / up to 211 US GALJusqu'à 860 L / up to 228 US GALJusqu'à 615 L / up to 21.72 CU FT3/3 4/4599 000 € ex VAT14.33 m / 47'7.66 m / 25' 195.4 m2 / 1,026.5 SQ FT1.27 m / 4' 214.4t 30,865 LBS116 m2 / 1.248 SQ FT160 m2 / 1,722 SQ FT2x45cv/hp up to 57cv/hpJusqu'à 800 L / up to 211 US GALJusqu'à 860 L / up to 228 US GALJusqu'à 615 L / up to 21.72 CU FT3/3 4/3 4/4 5/4675 000 € ex VAT14.93 m / 48' 117.88 m / 25'10101.8 m2 / 1.095 SQ FT1.36 m / 4' 515.5t 126 m2 / 1.356 SQ FT179 m2 / 1.926 SQ FT2x45 cv/hp up to 57 cv/hpJusqu'à 1000 L / up to 265 US GALJusqu'à 1120 L / up to 296 US GALJusqu'à 615 L / up to 21.72 CU FT3/3 4/4 5/5 6/6850 000 € ex VAT16.95 m / 55' 78.75 m / 28' 8128.3 m2 / 1,381 SQ FT1.47 m / 4' 1020.8t / 44,092 LBS158 m2 / 1.700 SQ FT204 m2 / 2,195 SQ FT2x57 cv/hp up to 80 cv/hpJusqu'à 1200 L / up to 317 US GALJusqu'à 1320 L / up to 349 US GALJusqu'à 615 L / up to 21.72 CU FT4/4 5/5 6/61 228 973 € ex VAT12.94m6.55m70.4m21.03m12t--2x150 cv/hp up to 250 cv/hpup to 1400 Lup to 760 Lup to 265 L3/3 4/4590 940 € ex VAT17.65 m / 58'9.06 m / 29'8139.5 m2 / 1.501 SQ FT1.47 m / 4'1024.9t / 54.957 LBS179 m2 / 1.926 SQ FT238 m2 / 2.561 SQ FT2x80 HP/CV UP TO / JUSQU'À 2x115 HP/CVUP TO / JUSQU'À 1 200 L / 317 US GALUP TO / JUSQU'À 1 320 L / 349 US GALUP TO / JUSQU'À 634 L / 22.39 CU FT3/3 4/4 5/5 6/61 449 000 € ex VAT
